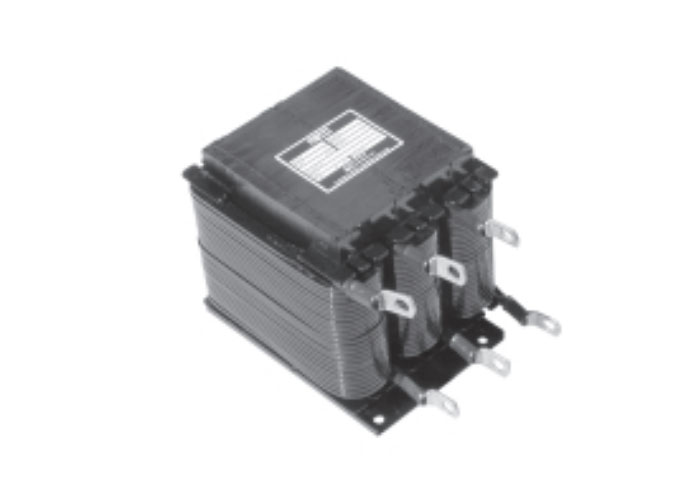

Harmonic Suppression Chokes (Reactors)

Product Details

  • Rated voltage: 0.66/2.5 kV.
  • Resonant frequency: 189 Hz (7%)
  • Inductance tolerance: ±5%.
  • Max over current: 1.6 x rated I.
  • Self supporting lugs
  • Black finish
  • Other voltages and ratings on request (Single Phase / Three Phase)

* Products can be manufactured to UL recognized Insulation system
** For PWM Reactors, DC Chokes and Specials please contact Sales

Manufacturing Details

Manufactured to AS/NZS60076.6

100% final testing

  • High potential test
  • Inductance test
  • Resistance test

Product Specifications

kVAR @ 400 Capacitor Current (Amp) Dimension Drawing Mounting Centres (mm) Weight (kg)
10 14.4 A 150x128xφ9.0 14
15 21.6 A 150x128xφ9.0 17
20 27.8 A 150x128xφ9.0 20
25 36.1 B 150x128xφ9.0 22
30 41.8 B 150x128xφ9.0 24
40 55.6 B 150x128xφ9.0 28
50 69.5 C 190x128xφ9.0 35
60 83.4 C 190x128xφ9.0 39
