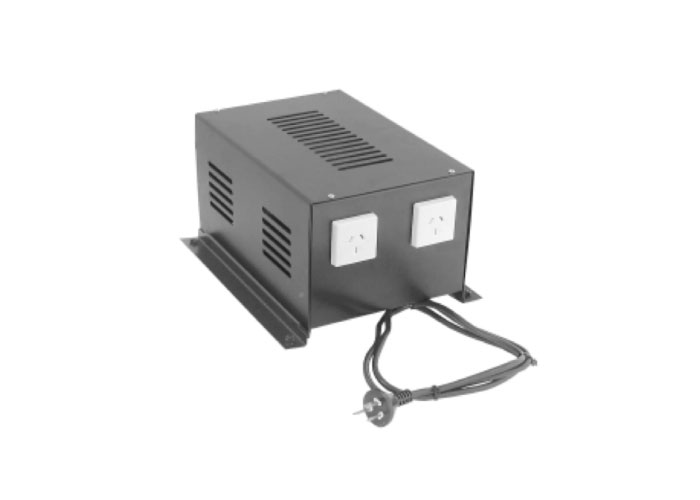

TX FPE Series

Product Details

  • 50/60Hz
  • Long service life
  • Class “H” insulation system
  • Single Output Socket (0.65 kVA – 1.2 kVA)
  • Dual output sockets (2 kVA) – 110 V (115 V) secondary versions have USA style sockets
  • Socket-earths are connected together
  • Flex & plug: 3-core 2.1 M x 1.0 mm2 (230/240 V Primary)
  • Flex no plug: 3-core 2.1 M x 1.0 mm2 (400/415 V Primary)
  • Powder coated Case in Black Finish (earthed)
  • Other voltages and VA ratings on request

*Products can be manufactured to UL recognized Insulation

Fuse Description

  • TL – Time Lag/Low breaking capacity (IEC 127-2 Sheet 3)
  • TH – Time lag/High breaking capacity (IEC 127-2 Sheet 3)
  • TE – Time lag/Enhanced breaking capacity (IEC 127-2 Sheet 6)
  • HRC – High rapturing capacity (Type gG)

Manufacturing Details

Manufactured to AS/NZS60076.6

100% final testing

  • High potential test
  • Inductance test
  • Resistance test

Product Specifications

Rating Recommended fuse protection Dimensions (mm) Weight (kg)
VA Primary Voltage Primary Secondary DWG A B C
110(115)V  230(240)V
0.65 110 (115) TE 6.3A A 210 153 150 9
230 (240) TH 3.15A
400 (415) (TBA) (TBA)
1.2 110 (115)  TL 15A B 320 210 150 14
230 (240)  TE 6.3A
400 (415) (TBA) (TBA)
2 110 (115)  HRC 20A C 300 254 175 22
230 (240)  HRC 10A
400 (415)  HRC 6A

About the Category

Transformers

A transformer transfers electrical energy from one circuit to another through the medium of a magnetic field.
