DLCM 50/400…500-E-C2-DALI

SKU: 9918362 Category: Tag:

Description

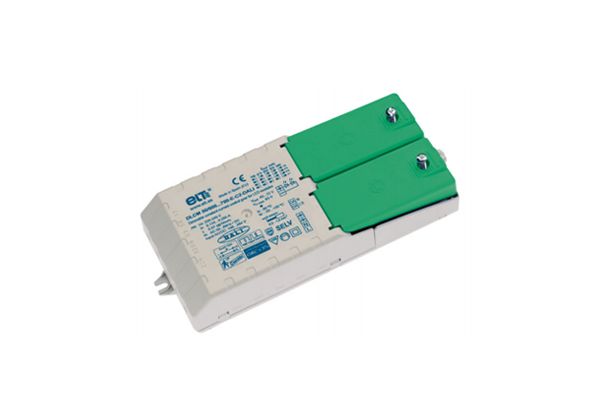

ELT DLCM 50/400…350-E-C2-DALI
DALI dimmable constant current control gear for LED modules up to 50W
~ IP20 equipment for independent use. Class II control gear.
~ 5 output selectable currents through dip-switch.
~ Dimming control by DALI interface.
~ Regulation range 3…100%.
~ PWM output dimming.
~ Regulation by Touch Dim.
~ Corridor function.
~ Output ripple current (ORC) <5%.
~ Maximum length of secondary wires: 5 m.
~ Stand-by ecological mode: consumption ~ Low Total Harmonic Distortions (THD) at maximum power: <10%.
~ High power factor.
~ Dynamic thermal protection.
~ Overload protection.
~ Short circuit protection.
~ Protection against no load operation.
~ Withstands 2 hours at 350V (AC).
~ Permitted input voltage AC/DC: 198-264V.
~ Rapid connector with fixed spring.
Conductor size 0.5 – 1.5 mm2 .
~ Nominal lifetime at max. ta allowed: 50.000h ( with a failure rate max. 0,2% per 1000h).

pdf-icon.pngView data-sheet for the product range here

Additional information

Weight 0.18 kg
