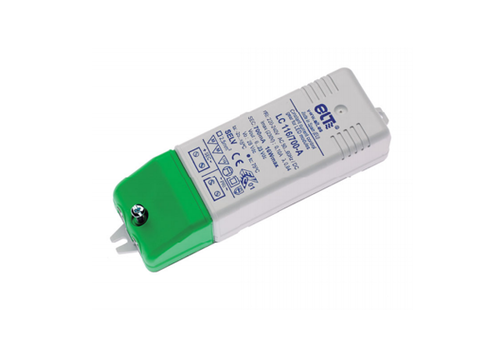

ELT LC 116/500-A
Constant current control gears for LED modules up to 16 and 25W.
~ IP20 equipment.
~ Class II electrical protection.
~ Indoor use.
~ Equipped with terminal cover and cable clamps.
~ Clamping screws on primary and secondary circuits for cables with
diameter: 3 mm to 8 mm.
~ Max. terminal section area 2,5 mm². (secondary circuit).
~ Maximum length of secondary cables: 5 m.
~ Suitable for installation on wooden surfaces.
~ Standby ecological mode: <0,4 W.
~ High power factor.
~ Thermal protection.
~ Overload protection.
~ Short circuit protection
~ Protection against no load operation.
~ LED module dynamic protection.
~ Permitted input voltage AC/DC: 198-264V.
~ Nominal lifetime at max. ta allowed: 50.000h (with a failure rate
max.0,2% per 1000h).
~ Output ripple current < 5%.
