Home Lighting Components Magnetic Ballasts & Transformers OMS 70A-02 W 240/50 065C100 CMP 05_0.560

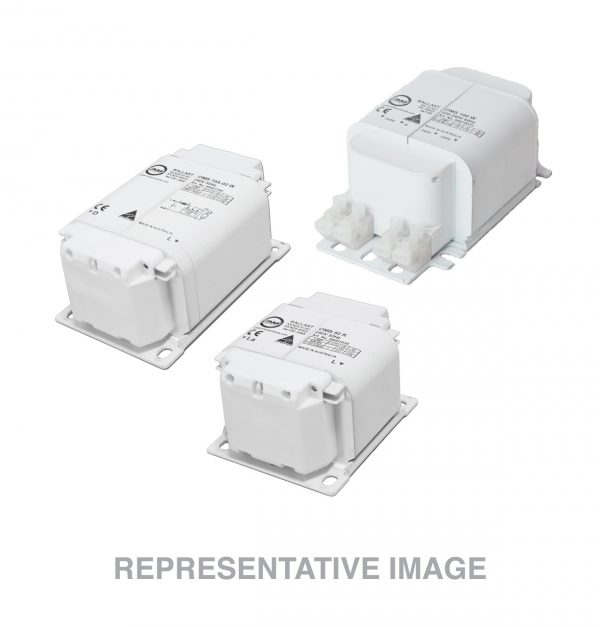

OMS 70A-02 W 240/50 065C100 CMP 05_0.560

SKU: 89001160 Category: Tags: ,

Description

OMS  70A-02 W 240/50 065C100 CMP 05_0.560

Lamp Ballast Electrical Thermal Physical
Wattage Voltage Current Type Article Number Loss Hot Input Power Lamp Current Lamp Start Current  Circuit P F Line Current Line Start Current Capacitor   Stack Length Mtg centres Weight
W V mA     W W A A cos ø A@0.9PF A@0.9PF μF0.9PF Δt mm mm mm kg
240 V 50 Hz – OM ballasts
Metal-halide
70 90 1 OMS70A-02 (TH) 89001160 14 84 1 1.16 0.35 0.39 0.47 11 65 65 100 86 1.5
High-pressure mercury vapour
70 90 1 OMS70A-02 (TH) 89001160 14 84 1 1.16 0.35 0.39 0.47 11 65 65 100 86 1.5

Additional information

Weight 1.5 kg
