DAL MULTI C01 – 4 DALI addr to PWM 4ch

SKU: 9955917 Category: Tag:

Description

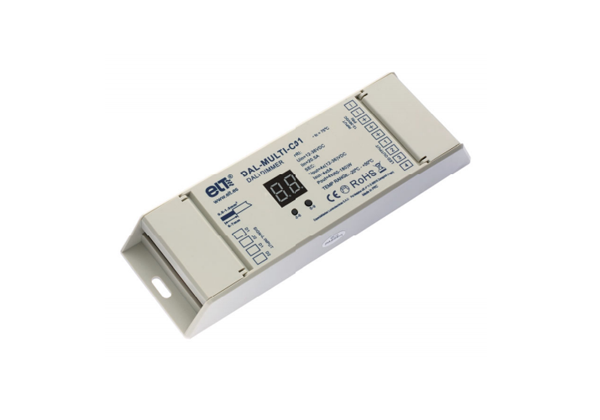

ELT DAL-MULTI-C01
DAL-MULTI-C01
DALI Decoders, 4 DALI addresses, 4 channels
~ This device allows to control LED strips from any control system based on DALI protocol. Only needs a connexion to the DALI bus and assign the device the DALI address to control the strips.
~ Controls LED strips of any kind: single colour, TW, RGB & RGBW from a DALI system.
~ Includes screen and buttons to see and assign easily the DALI address and select the LED strip type.
~ The same model can work with the 4 types of LED strip:
~ 1 Channel – For single colour LED strips. Each channel has a current output of 5A.
~ 2 Channels – TW (Tuneable White) LED strips. Two terminals for cold white and another two for warm white. 5A per channel.
~ 3 Channels – RGB LED strips. 1 terminal for each channel: R, G, B 5A per channel.
~ 4 Channels – RGBW LED strips. 1 terminal for each channel: R, G, B, W 5A per channel.
~ 0-100% dimming range via logarithmic curve.

pdf-icon.pngView data-sheet for the product range here

Additional information

Weight 0.13 kg
