Description

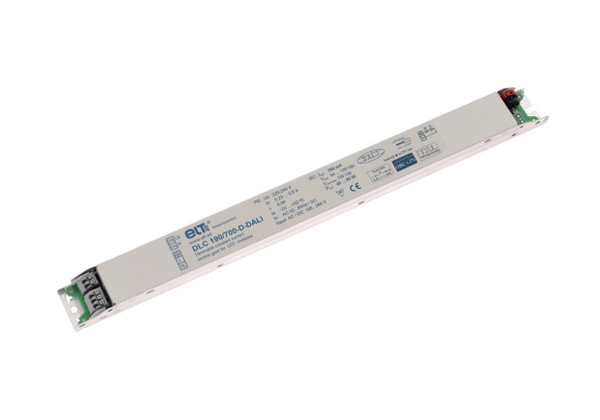

ELT DLC 150/700-D-DALI
DALI dimmable constant current control gear
~ IP20 equipment.
~ Dimming control by DALI inerface.
~ Regulation range 3…100%.
~ PWM output dimming.
~ Regulation by Touch Dim.
~ Driver for built-in use. Class I.
~ Maximum length of secondary cables: 2 m.
~ Standby ecological mode: consumption <0,4W
~ Low Total Harmonic Distortions (THD) at maximum power <8%.
~ High power factor.
~ Dynamic thermal protection.
~ Overload protection.
~ Short circuit protection.
~ Protection against no load operation.
~ Withstands 2 hours at 350V (AC).
~ Permitted input voltage AC/DC: 198-264V.
~ Rapid connector with fixed spring.
Conductor size 0,5 – 1,5 mm2 .
~ Nominal lifetime at max. ta allowed: 50.000h ( with a failure rate max. 0,2% per 1000h).
~ Output ripple current <2%.
