eLED LINE 1 1250 840

SKU: 9950509 Category: Tag:

Description

ELT eLED LINE 1 1100 840

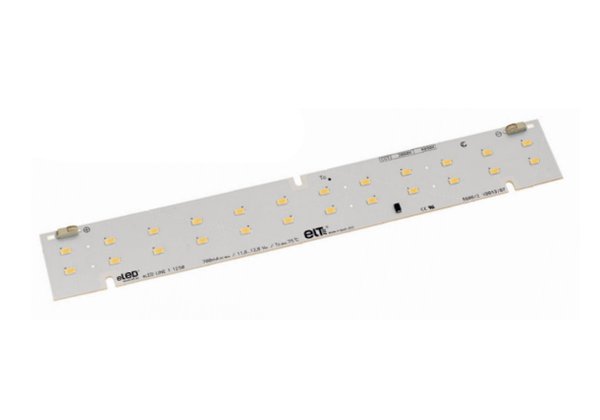

LED module eLED LINE 1 100
~ Beam angle 120°.
~ Color tolerance: 3 MacAdam’s ellipses – 3SDCM.
~ Excellent thermal performance, not require further dissipation
~ Dimmable.
~ Indifferent installation position.
~ Anti-reverse polarity protection.
~ Push wire connection.
~ The connector allows connection and disconnection.
~ Wire gauge: 0,2… 0,75 mm2 .
~ Stripping length: 6…7 mm.
~ Long life time of 50,000 hours at Tc luminous flux of >70% after this time period.

pdf-icon.pngView data-sheet for the product range here

Additional information

Weight 0.03 kg
