LC 150/500-E-C2-FAN

SKU: 9918222 Category: Tag:

Description

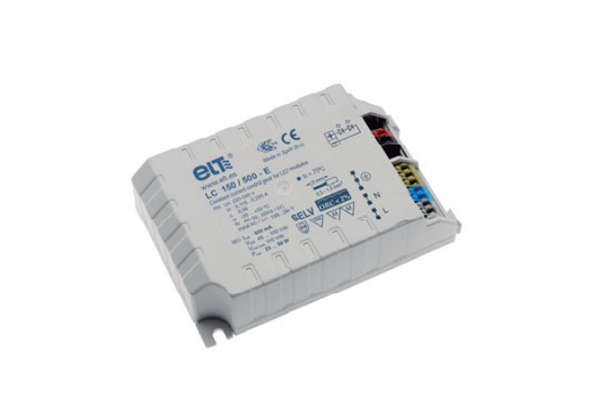

ELT LC 150/500-E-C2-FAN
Control Gear Without Fan Output
~ IP20 equipment for independent use. Class II control gear.
~ Maximum length of secondary cables: 5 m.
~ High power factor.
~ Thermal protection.
~ Overload protection.
~ Short circuit protection.
~ Protection against no load operation.
~ Withstands 2 hours at 350V (AC).
~ Permitted input voltage AC/DC 198-264V.
~ Rapid connector with fixed spring.
Conductor size 0,5-1,5 mm2 .
~ Drivers connection in series.
~ Nominal lifetime at max. ta allowed: 50.000h ( with a failure rate max. 0,2% per 1000h).
~ Output ripple current <2%.
~ THD <10%.

pdf-icon.pngView data-sheet for the product range here

Additional information

Weight 0.17 kg
