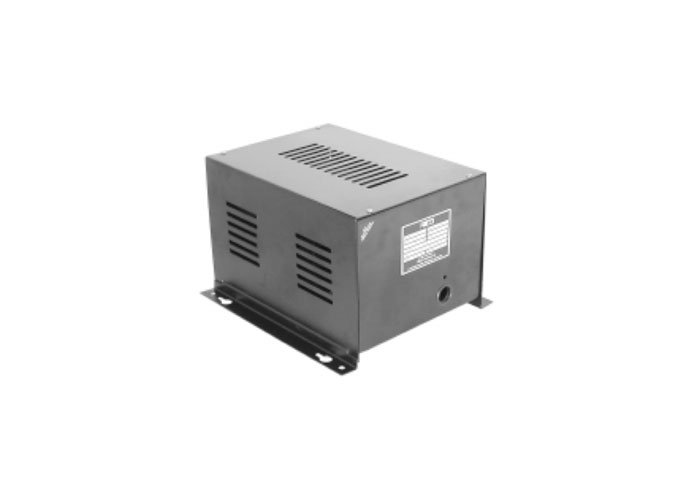

TX PW Series

Product Details

  • 50/60 Hz
  • Long service life
  • Class “F” insulation system (25 VA – 320 VA)
  • Class “H” insulation system (0.65 kVA – 6 kVA)
  • Self leads 300 mm long
  • Clear Finish (25 VA – 320 VA) / Black Finish (0.65 kVA – 6 kVA)
  • Other voltages and VA ratings on request

Installation

  • Transformers must be protected by either a Primary or Secondary fuse
  • The fuses specified for Primary side are Semi-delay Miniature fuses. Use the fuse specified or an equivalent

Fuse Description

  • TL – Time Lag/Low breaking capacity (IEC 127-2 Sheet 3)
  • TH – Time lag/High breaking capacity (IEC 127-2 Sheet 3)
  • TE – Time lag/Enhanced breaking capacity (IEC 127-2 Sheet 6)
  • HRC – High rapturing capacity (Type gG)

Manufacturing Details

Manufactured to AS/NZS61558

100% final testing

  • High potential test
  • Voltage ratio test
  • Resistance test
  • Short-circuit test

Product Specifications

Rating Recommended fuse protection Dimensions (mm) Horizontal Mtg. Dimensions (mm) Weight (kg)
VA Primary Voltage Primary Secondary DWG A B C Mounting Centres (DxWxø) DWG A B C Mounting Centres (DxWxø)
25 110 (115) TL 0.4A A 50 85 55 72xø4/6.5 0.6
230 (240) TL 0.2A
400 (415)
70 110 (115) TL 0.8A B 52 65 80 40.5×37.5xø4.5 C 57 80 65 47.0×63.5xø4.5 1.7
230 (240) TL 0.4A
400 (415)
150 110 (115) TL 1.6A B 65 80 100 49.5×50.5xø6.0 C 65 100 80 52.0×79.5xø5.5 2
230 (240) TL 0.8A
400 (415) (will be advised)
320 110 (115) TL 4.0A B 80 95 115 63.5×63.5xø5.5 C 80 115 95 58.0×75.0xø5.0 3.6
230 (240) TL 1.6A
400 (415) (will be advised)
Rating Recommended fuse protection Dimensions (mm) Weight (kg)
VA Primary Voltage Primary Secondary DWG A B C Mounting Centres (DxWxø)
110(115)V  230(240)V
0.65 110 (115) TE 6.3A A 310 210 170 280x184xø8.0 9
230 (240) TH 3.15A
400 (415) (TBA) (TBA)
1.2 110 (115)  TL 15A A 310 210 170 280x184xø8.0 14
230 (240)  TE 6.3A
400 (415) (TBA) (TBA)
2 110 (115)  HRC 20A A 310 255 175 270x230xø8.0 22
230 (240)  HRC 10A
400 (415)  HRC 6A
4 110 (115)  HRC 40A B 390 210 295 365x128xø9.0 43
230 (240)  HRC 20A
400 (415)  HRC 10A
6 110 (115)  HRC 63A B 460 230 295 435x165xø9.0 60
230 (240)  HRC 32A
400 (415)  HRC 16A
